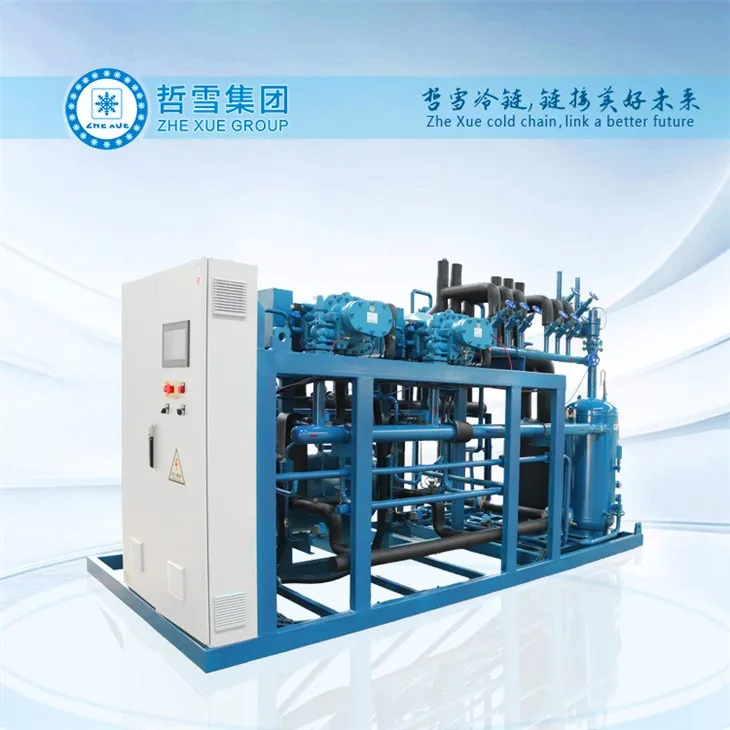

Refrigeration Compressor Racks With Screw Compressor

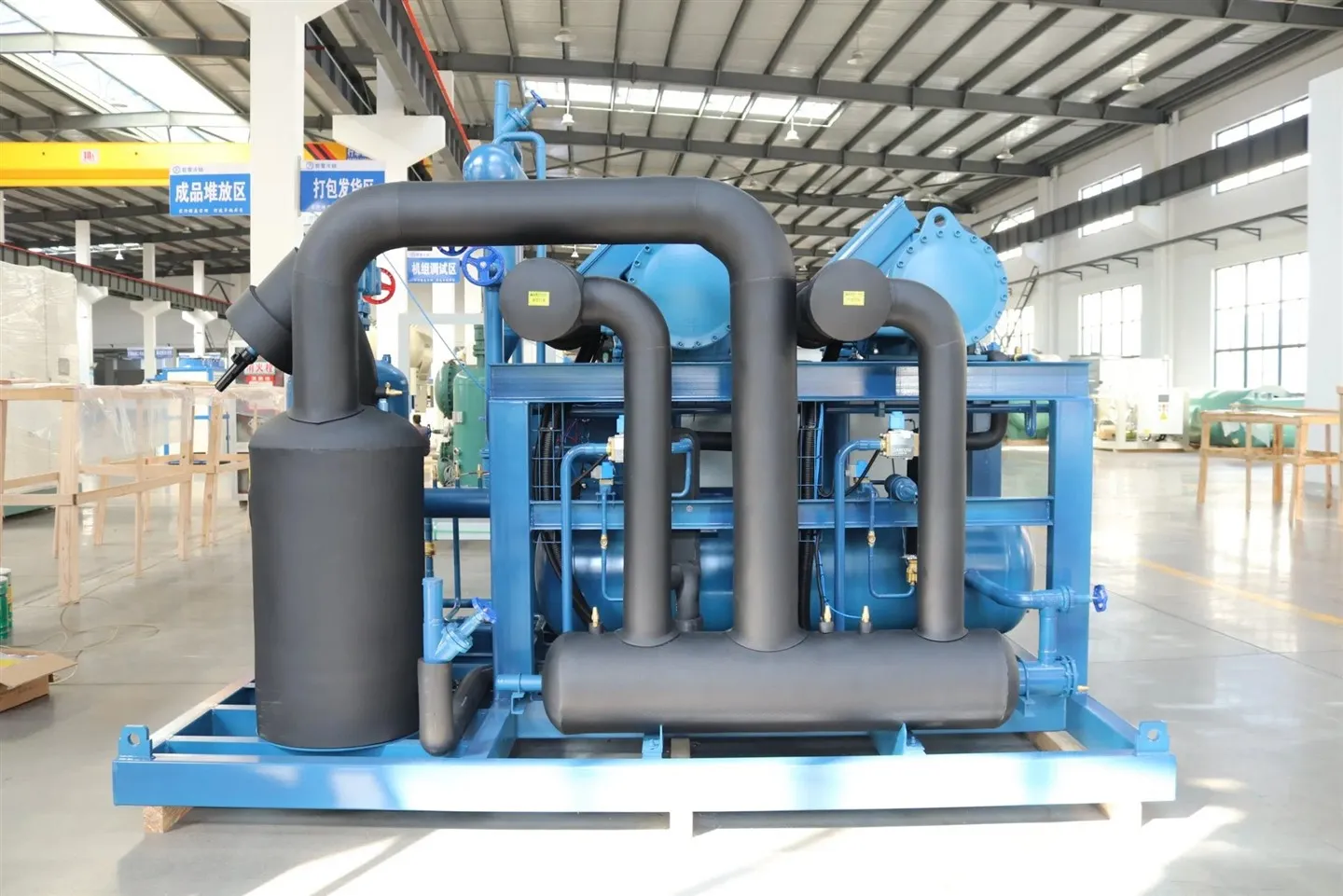

Refrigeration unit with Frascold screw compressor

Refrigeration unit with Frascold screw compressor is designed to deliver powerful cooling performance for different applications like cold storage, hotel cold rooms, industrial process cooling, medical refrigeration etc, especially in low and blasting temperature.

The device has the advantages of compact structure, small vibration, small footprint, simple installation and easy replacement of components. Our refrigeration unit with Frascold screw compressor can efficiently use different refrigerants like R404A, R507 and R22.

• This equipment often uses the international famous brand of compressor, Frascold from Italy.
• Low noise, low vibration, high efficiency, large cooling capacity, low power consumption
• Simple operation, no need for power supply, safe operation, no need to stop storage, no need to pound goods, no rising storage temperature, ice state drop, no wet inventory.
• The unit is heated from the inside and defrosted thoroughly, with 80% of the frost layer falling in a solid state.

• Unit model: MFRLGF2- 60(L)JY
• Refrigerant: R507(R404A)
• Power supply: 380V/3P/50HZ
• Compressor model: FVR-L-30-120Y*2
• Evaporating Temperature: -50℃~-10℃
• Evap. Temp(-25℃):

                                Cooling capacity(KW):  102

                                Power input(KW): 55.6

• Evap. Temp(-42℃)

                                Cooling capacity(KW): 47.6

                                Power input(KW): 48.4

• Liquid pipe(mm): Φ28
• Suction pipe(mm): DN80
• Oil separator outlet(mm): DN50
• Reservoir inlet(mm): Φ35
• Overall size(L*W*H)(mm): 2600*1950*1800

Note: Cooling capacity and power are set based on condensing temperature of 35℃,used for evaporation condenser, in addition to the above-mentioned specifications and requirements, our company is capable of providing customized products in order to satisfy customer needs.

Q:Can you offer installation service of cold storage ?
A:Our engineer can go to your site and offer your instructions service
Q:Warranty time ?
A: 12 months after receiving goods.

Q: What is the main market for your products?
A: Our main market is in Middle East, Southeast Asia,South America, Africa,South Asia and so on.
