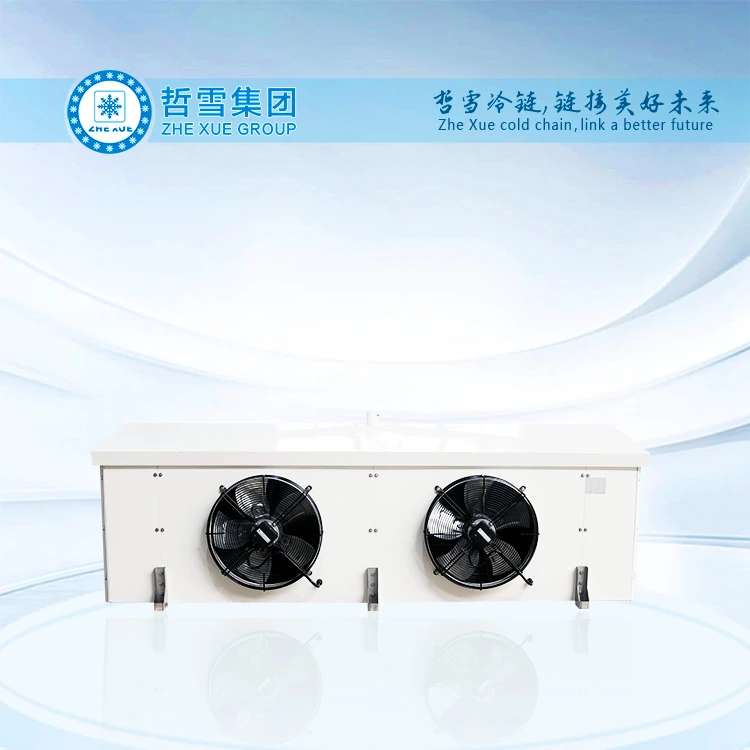

Ceiling evaporator corrosion resistant
As with any HVAC system, ceiling evaporators are susceptible to corrosion, especially in areas of high humidity. Therefore it is important to use ceiling evaporator corrosion resistant, which should be a fundamental consideration when choosing the right type of evaporator for your HVAC system. At the same time, the type of coating also plays a crucial role in its corrosion resistance.This is essential to improve the efficiency, performance and service life of the system.
Products Feature
Designed by the advanced European technology , make the products more efficiency.
The external casing is s/s or galvanized steel sheet with electrostatic spraying technology, comply with hygiene standards.
The inner casing is anti corrosive aluminium sheet and the floating coil design can prevent pipe broke.
Using 15.88mm copper pipe and 12.7mm inner thread copper pipe, special length between pipes and advanced technology of heat exchange surface make our evaporator more efficiency.
Fins stamping equipment adopts scientific mold , using 15.88mm pipes and 12.7mm inner thread pipes, it reduce the wind resistance.
Equipped with the extended wind guide,it can improve the motors efficiency and raise the air flow (motors more than 500mm)
We have windshield at the bottom of the fan coils, it can prevent the air through the water tray,then more wind will through out the fan coils to improve the heat exchange efficiency.
All evaporators are equipped with the international brand external fan motors.
Optimized pipe rows and lines design and different liquid distributor can improve the heat exchange efficiency based on the different condition.
All evaporators are equipped with the connection of pressure gauge.
All evaporators are equipped with best brand s/s ele. Heaters to defrost quickly.
The compact design saves much Freon
Middle and big size evaporator are equipped with the installation frame, it is easy to transport and install.
Performance parameters
|
Φ500mm-10P R404A |
|||||
|
C10=10mm Fin space |
|||||
|
Model |
MJL502C10R4-E |
MJL502C10R6-E |
MJL503C10R4-E |
MJL503C10R6-E |
|
|
Cooling capacity (KW) |
SC1(△t=10K) |
21.10 |
30.60 |
33.00 |
44.70 |
|
SC2(△t=8K) |
14.90 |
20.80 |
22.50 |
31.30 |
|
|
SC3(△t=7K) |
11.30 |
15.90 |
17.30 |
23.90 |
|
|
SC4(△t=6K) |
9.50 |
13.10 |
14.10 |
19.70 |
|
|
SC5(△t=6K) |
8.90 |
12.70 |
13.80 |
19.10 |
|
|
heat exchange area ㎡ |
55.10 |
84.40 |
84.80 |
124.70 |
|
|
tube volume(dm³) |
19.18 |
28.70 |
27.80 |
41.30 |
|
|
air flow rate (m³/h) |
16400 |
16000 |
24600 |
24000 |
|
|
total fan power (W) |
1680 |
1680 |
2520 |
2520 |
|
|
total fan current(A) |
2.90 |
2.90 |
4.40 |
4.40 |
|
|
air flow(m) |
39 |
38 |
41 |
40 |
|
|
defrost power(W) |
9000 |
9000 |
14400 |
14400 |
|
|
pipe dia in/out (Φmm) |
16/35 |
22/42 |
22/42 |
28/54 |
|
|
noise(db) |
59 |
59 |
59 |
59 |
|
|
weight(kg) |
195 |
210 |
290 |
310 |
|

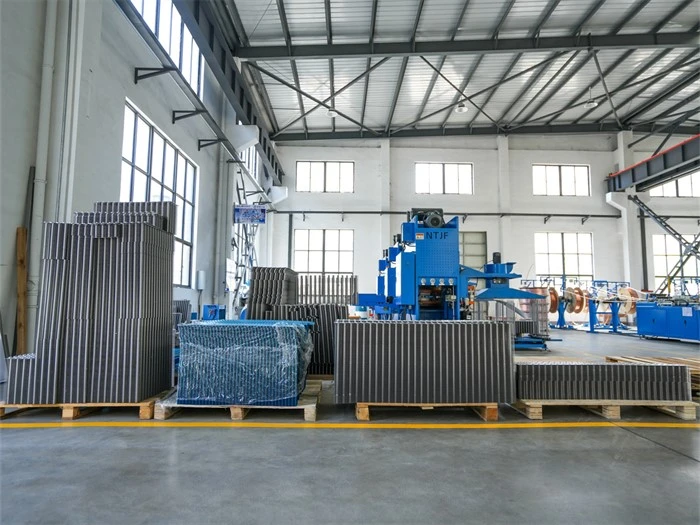

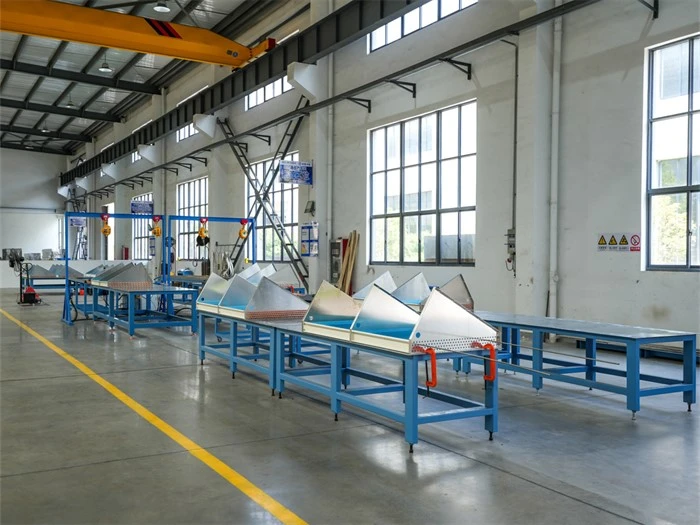

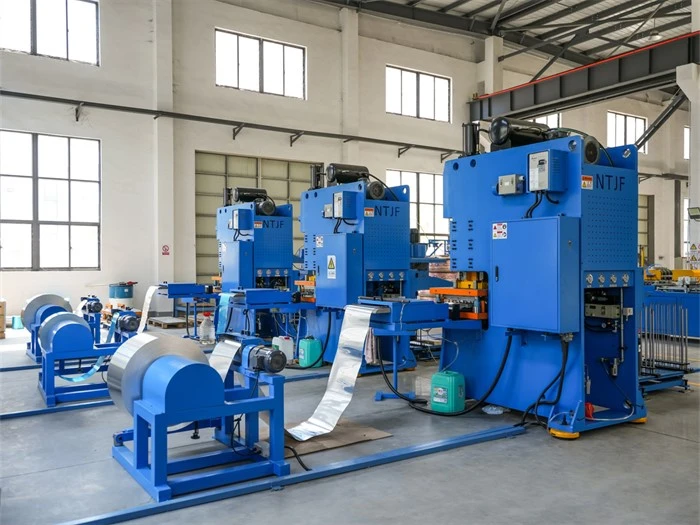

Production line
FAQ
Q: Can you accept OEM design?
A: We usually promote our Zhexue Brand, but OEM design is acceptable.
Q: Do you provide sample? Is it free?
A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.
Q: Which shipping way can you provide?
A: We can provide shipping by sea, by air and by express.
