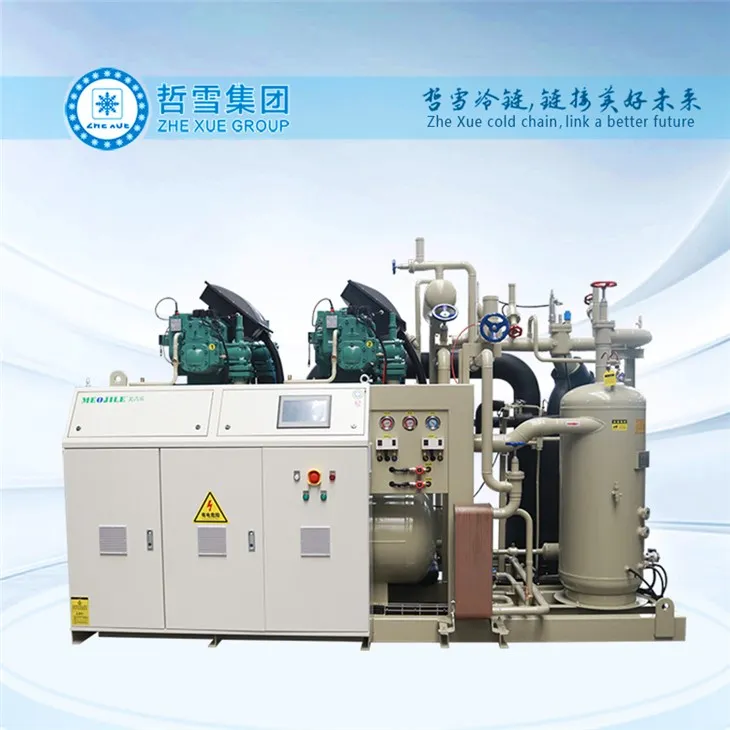

250HP Compressor Racks with 2 Bitzer Compressors
The 250HP Compressor Racks with 2 Bitzer Compressors is an industrial-grade cooling solution engineered for high-capacity applications requiring reliable, efficient temperature control. The unit integrates advanced components, including oil separators, suction and discharge valves, and a microprocessor-based control system, ensuring seamless operation across diverse load conditions. Designed for use in large - scale cold storage, food processing, pharmaceutical manufacturing, and commercial HVAC systems, this configuration offers redundancy, scalability, and precise temperature regulation.

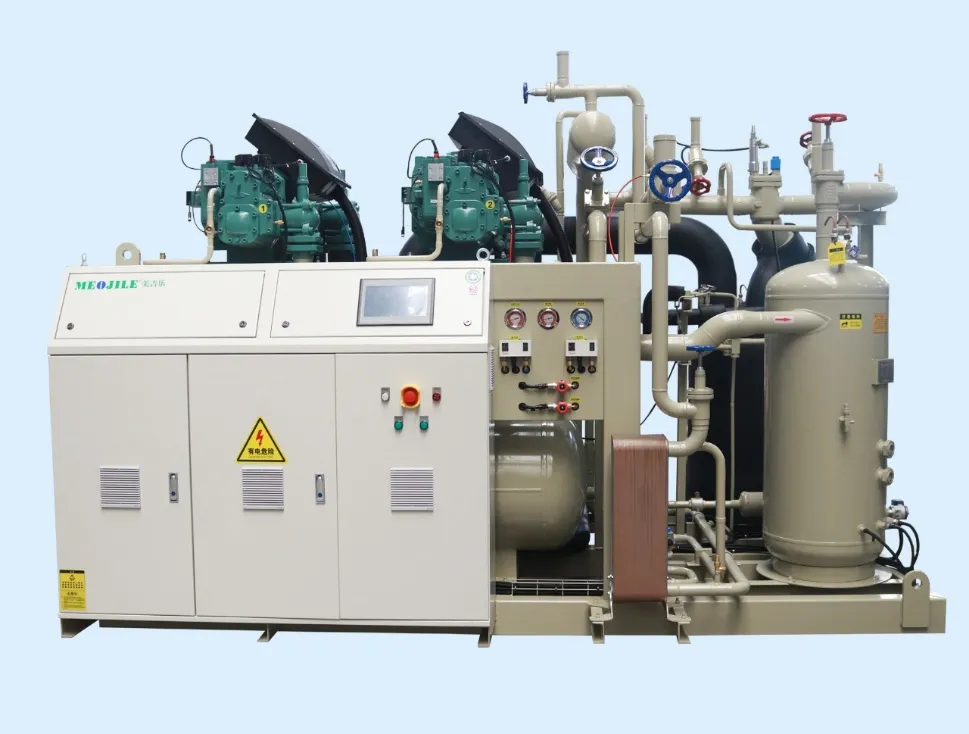

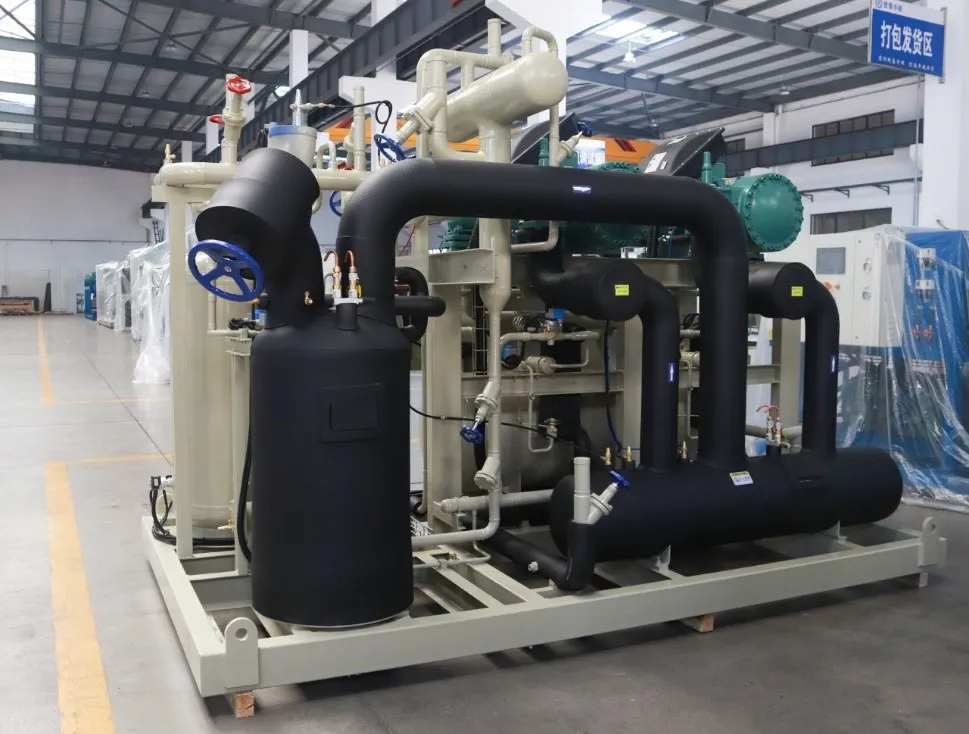

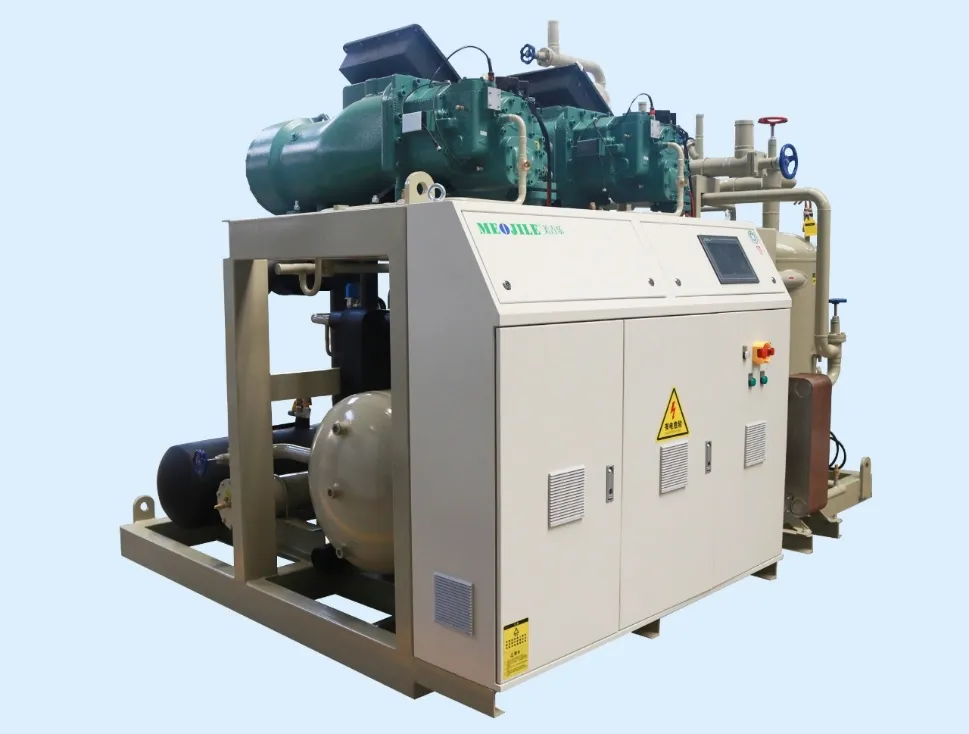

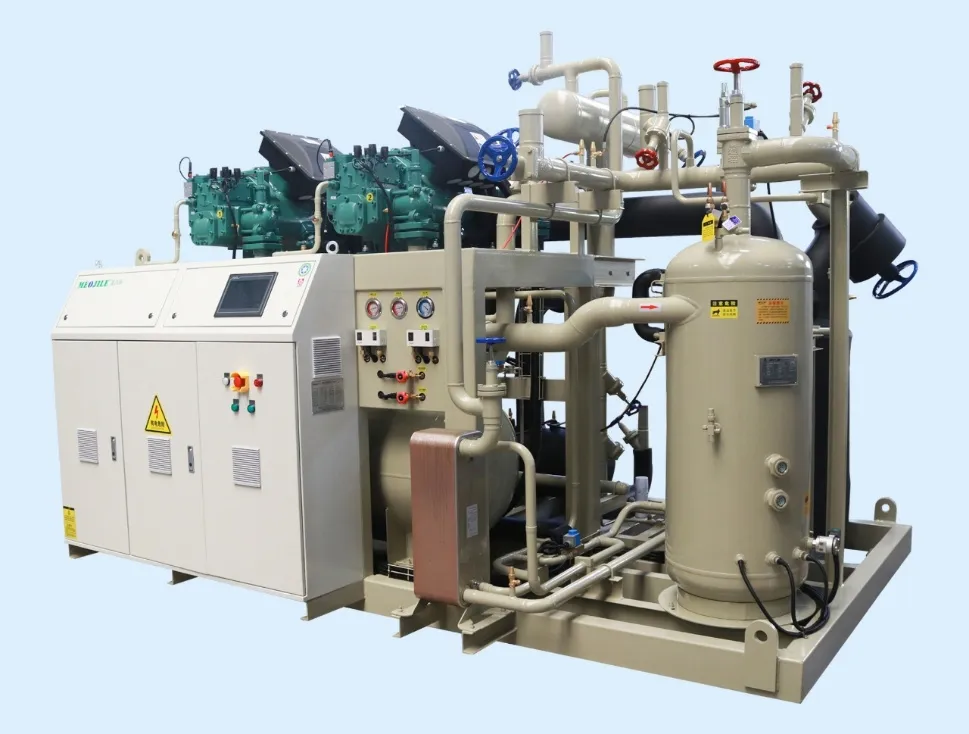

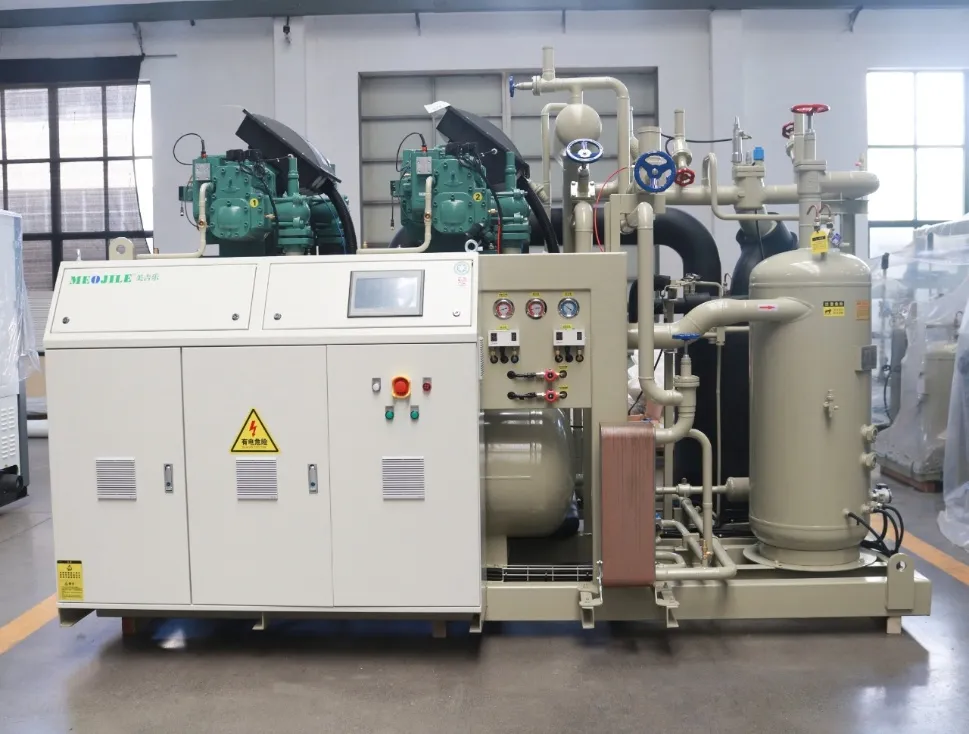

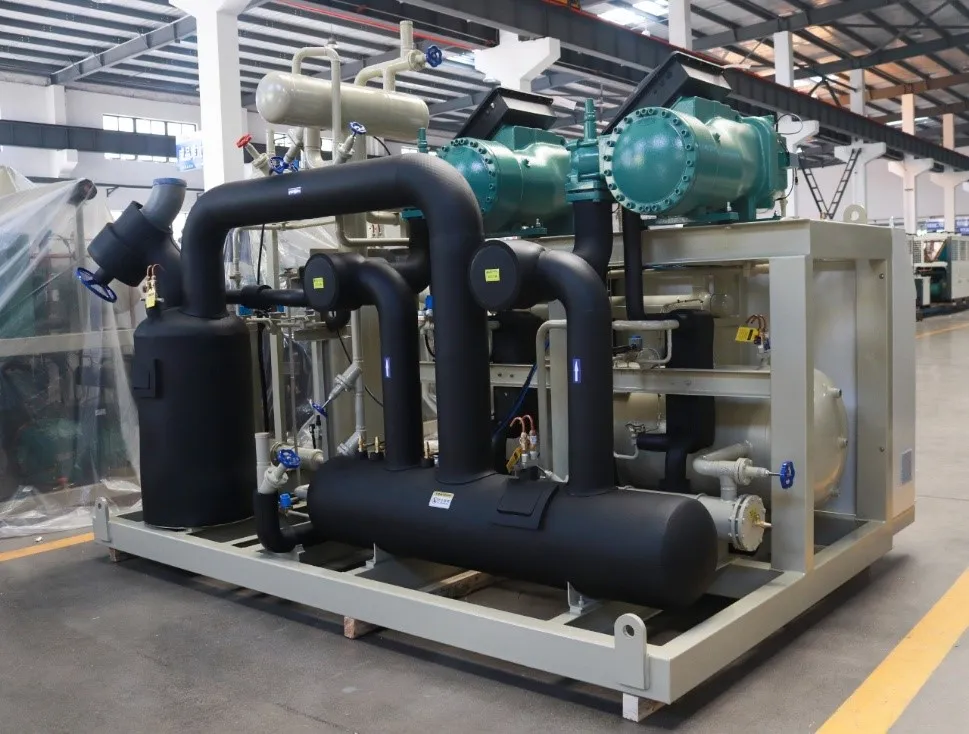

Detailed Photos
Products Features
Enhanced Heat Exchange Efficiency
The unit integrates high-performance condensers and evaporators with optimized heat transfer surfaces. The condensers often feature advanced fin - tube designs and optimized refrigerant flow channels, reducing pressure drops and maximizing heat dissipation. Similarly, the evaporators are engineered to ensure uniform refrigerant distribution, enabling rapid heat absorption from the cooled medium. This results in faster cooling cycles and lower energy consumption compared to standard designs.
Intelligent Load Management
Equipped with an advanced control algorithm, the twin-parallel system dynamically allocates load between the two compressors. By analyzing real-time cooling demands, it can prioritize compressor usage, ensuring that both units operate at their most efficient points. For example, during low-load periods, one compressor may run at a reduced speed while the other remains in standby, minimizing wear and tear while maintaining precise temperature control.
Precise Temperature Management
Microprocessor - based control systems maintain tight temperature tolerances (±0.5°C or better).
Advanced sensors monitor suction/discharge pressures, temperatures, and oil levels for proactive system protection.
Product Parameters
| 250HP Compressor Racks with 2 Bitzer Compressors | ||
| Unit model | MBZLGF2-250(L)JY | |
| Refrigerant | R507(R404A) | |
| Power supply | 380V/3P/50HZ | |
| Compressor | Model | HSN8571-125 |
| Qty | 2 | |
| Evaporating Temperature | -50℃~-10℃ | |
| Evap.Temp (-25℃) |
Cooling capacity(KW) | 358.2 |
| Power input(KW) | 182.4 | |
| Running current(A) | 306.2 | |
| Evap.Temp (-42℃) |
Cooling capacity(KW) | 181 |
| Power input(KW) | 155.4 | |
| Running current(A) | 266.4 | |
| Liquid pipe(mm) | DN50 | |
| Suction pipe(mm) | DN150 | |
| Oil separator outlet(mm) | DN80 | |
| Receiver inlet(mm) | DN65 | |
| Overall size | L(mm) | 3100 |
| W(mm) | 2100 | |
| H(mm) | 2200 | |
| Cooling capacity and power are calculated by Tc. 35℃, this is also suitable for evaporation condenser. | ||
FAQ
Q: Are you a factory or trading company ?
A: We are a comprehensive refrigeration equipment factory, we produce air cooled and water cooled condensing unit, water chiller, evaporators, air condensers. We cooperate with many international compressor brands, such as Bitzer, Mycom, GEA, Frascold, Hanbell and others .
Q:Can you offer installation service of cold storage ?
A:Our engineer can go to your site and offer your instructions service
Q:Warranty time ?
A: 12 months after receiving goods.
Q: Do you have any after-sales service for export orders ?
A:We are working with some customers for after-sales service and also you can cooperate with us as an agent and after-sales service center.
