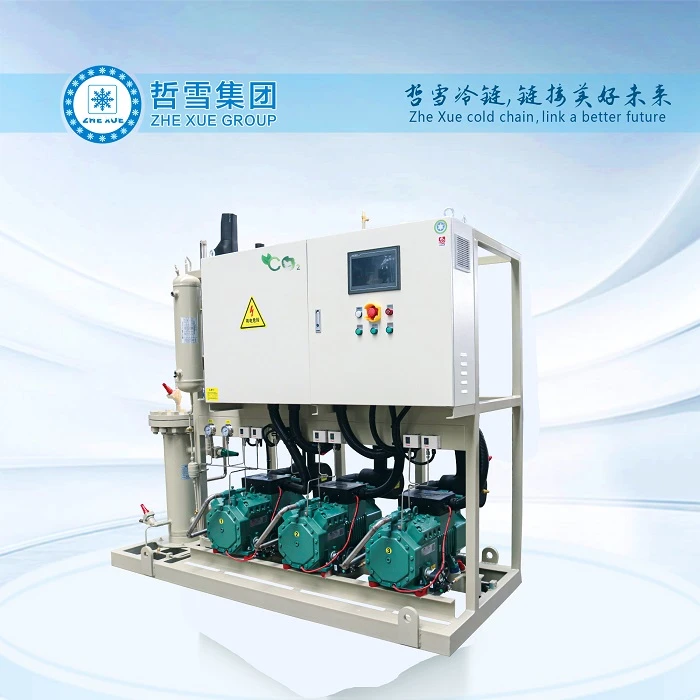

Air cooled condensing unit with piston compressor
Zhexue brand air cooled condensing unit with piston compressor is our main product. Those type condensing unit usually match with air cooled condenser. Sometimes , we choose evaporative condenser.
Bitzer semi-hermetic piston refrigeration compressor as the main engine, which has high quality and high reliability. The condensing unit is operated in parallel by multiple compressors, sharing the exhaust manifold, suction manifold, condenser and liquid storage tank to form a refrigeration circulation system.
Nowadays , our customers can accept high quality products with more reliable service. Not only our competitive price , but also our timely after-sales service. We win many orders from our clients.
Zhexue air cooled condensing unit with piston compressor with its high technology design , we also get many records from our government , in last two years , our company was recorded as high-tech company in our province. In future , our condensing unit will service more cold storage and offer best foods for everyone.
Performance parameters
| BITZER Middle Temperature Compressor Racks | |||||
| Unit model | MBZBFF2- 50M(Y) |
MBZBFF2- 60M(Y) |
MBZBFF2- 70M(Y) |
||
| Refrigerant | R22(R404A/R507A) | ||||
| Power supply | 380V/3P/50HZ | ||||
| Compressor | Model | 4HE-25 | 4GE-30 | 6HE-35 | |
| Qty | 2 | 2 | 2 | ||
| Evaporating Temperature | -20℃~+10℃ | ||||
| Evap.Temp | -8℃ | Cooling capacity(KW) | 79.6 | 92.6 | 119.6 |
| -8℃ | Power input(KW) | 30.4 | 35 | 45.6 | |
| -8℃ | Running current(A) | 54.4 | 64.4 | 83.2 | |
| Liquid pipe(mm) | Φ28 | Φ28 | Φ35 | ||
| Suction pipe(mm) | DN65 | DN65 | DN65 | ||
| Discharge pipe(mm) | Φ42 | Φ42 | Φ54 | ||
| Receiver inlet(mm) | Φ35 | Φ35 | Φ42 | ||
| Overall size | L(mm) | 2300 | 2300 | 2500 | |
| W(mm) | 1200 | 1200 | 1200 | ||
| H(mm) | 1750 | 1750 | 1850 | ||
FAQ:
Q:Can you offer installation service of cold storage ?
A:Our engineer can go to your site and offer your instructions service
Q:warranty time ?
A: 1 year after you receiving goods.
Q: do you have any after-sales service for export orders ?
A：we are working with some customers for after-sales service and also you can cooperate with us as an agent and after-sales service center.
outdoor part installation:
The outdoor condenser part can be installed horizontally or vertically, saving a lot of installation space for users.However, the installation platform or foundation should be level and the location should allow free ventilation.Never place the condenser in an area adjacent to steam, hot air or flue gas emissions. Meanwhile architectural structure and acoustics experts should provide guidance before installation to avoid phenomena such as skew, uneven stress, and transmission of vibrations in the unit.
Production line:
