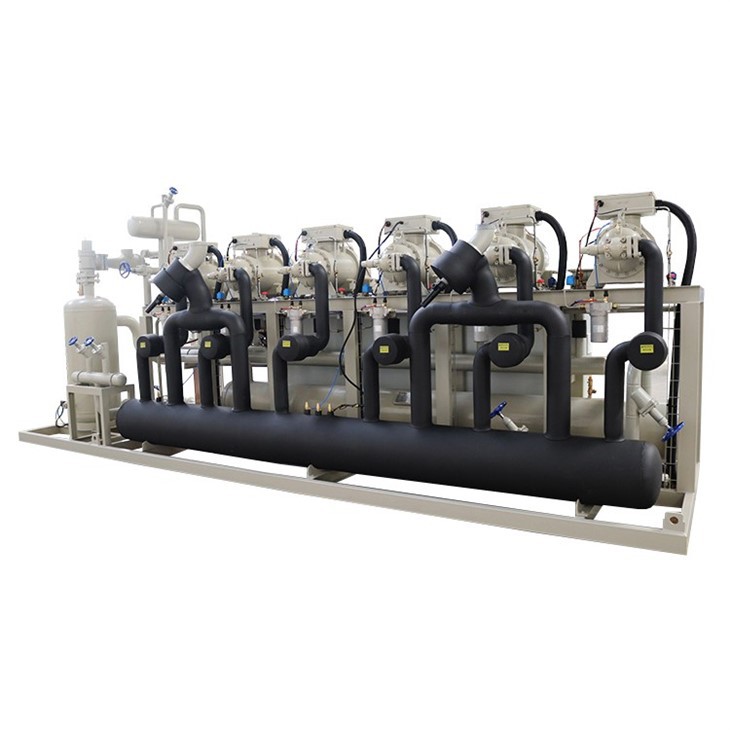

High temperature industrial condensing unit
The Zhexue High Temperature Water-Cooled Screw Condensing Unit is designed for industrial refrigeration applications requiring stable performance under high evaporating temperature conditions.
Equipped with a high-efficiency screw compressor and water-cooled condensing system, the unit delivers reliable cooling capacity, excellent energy efficiency, and long-term operating stability for medium-temperature refrigeration applications.
The water-cooled design utilizes a high-performance shell-and-tube condenser, providing stable heat rejection and consistent condensing temperature control compared with conventional air-cooled systems.
Designed for continuous industrial operation, the unit is widely used in food processing plants, cold storage facilities, beverage production, and other large-scale refrigeration projects.
Efficient Screw Compression for High Evaporating Temperature Applications
The screw compressor technology provides smooth and stable compression performance, making the unit suitable for refrigeration systems requiring continuous operation and reliable cooling output.
Under high evaporating temperature conditions, the screw compressor maintains excellent volumetric efficiency and operational stability.
- Stable operation under medium-temperature refrigeration conditions
- High refrigeration efficiency
- Lower vibration compared with reciprocating compressors
- Suitable for continuous industrial operation
- Long service life and reliable performance
Performance parameters
|
HANBELL screw compressor racks condensing unit for middle room temperature |
|||||
|
Unit model |
MHZLGF3- |
MHZLGF3- |
MHZLGF3- |
||
|
Refrigerant |
R507(R404A) |
||||
|
Power supply |
380V/3P/50HZ |
||||
|
Compressor |
Model |
RC2-100D-P |
RC2-140D-P |
RC2-180D-P |
|
|
Qty |
3 |
3 |
3 |
||
|
Evaporating Temperature |
-30℃~+10℃ |
||||
|
Evap.Temp |
-10℃ |
Cooling capacity(KW) |
183 |
252.9 |
332.4 |
|
-10℃ |
Power input(KW) |
73.2 |
96.3 |
120.9 |
|
|
-28℃ |
Cooling capacity(KW) |
101.1 |
139.8 |
184.5 |
|
|
-28℃ |
Power input(KW) |
68.4 |
90.3 |
113.4 |
|
|
Liquid pipe(mm) |
Φ42 |
Φ42 |
Φ42 |
||
|
Suction pipe(mm) |
DN100 |
DN100 |
DN100 |
||
|
Oil separator outlet(mm) |
DN65 |
DN65 |
DN65 |
||
|
Receiver inlet(mm) |
DN50 |
DN50 |
DN50 |
||
|
Overall size |
L(mm) |
3800 |
3800 |
3800 |
|
|
W(mm) |
1950 |
1950 |
1950 |
||
|
H(mm) |
1700 |
1700 |
1700 |
||
|
cooling capacity and power input are calculated @35℃ condensing temperature, it is suitable for air cooled condenser. |
|||||
FAQ
Q: What is your delivery time for normally products?
A: Usually for condensers and evaporators, delivery time is 7 days, but if you change the components, that would be longer.
Q:When can I get the price?
A:Usually we quote within 24 hours after we get your inquiry.
Q: Do you provide sample? Is it free?
A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.
