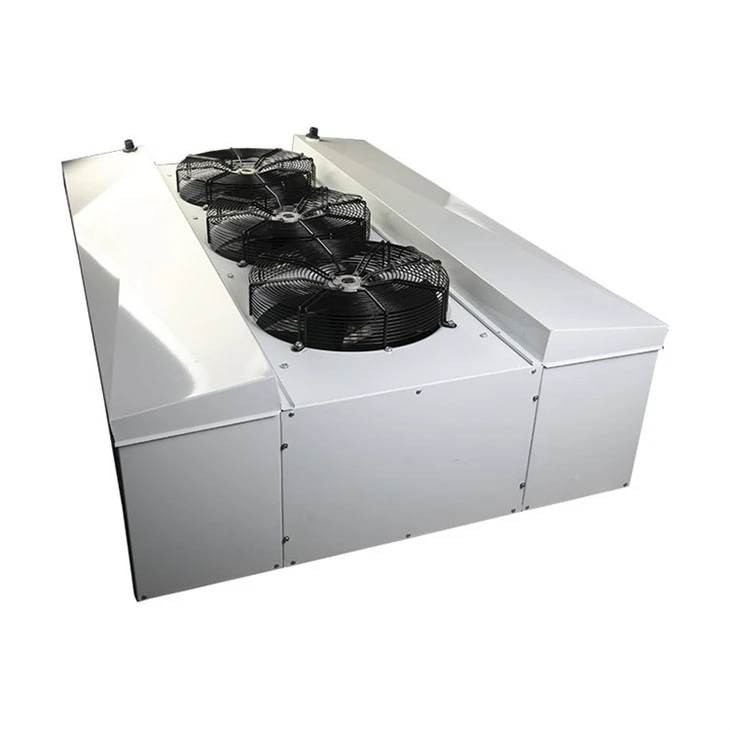

High temperature double side blowing evaporator
Zhexue high temperature double side blowing evaporator is suitable for any kinds of cold storage for the food vegetables, food processing workshop and logistics center. The compact design of ceiling mounted our evaporators equipped save much space, we also choose the external fan motor with lower noise to build a comfortable environment. Zhexue high temperature double side blowing evaporators' cooling capacity range is from 1.0kw to 210kw, they are suitable for Freon such as R134A, R22, R404A, R507C and R407C.
Main features
1. Using 15.88mm copper pipe, 9.52mm and 12.7mm inner thread copper pipe, special length between pipes and advanced technology of heat exchange surface make our evaporator more efficient.
2. Equipped with the extended wind guide, it can improve the motors efficiency and raise the air flow (motors more than 500mm).
3. The compact design saves much Freon.
4. Medium and big size evaporator are equipped with the installation frame, it is easy to transport and install.
Performance parameters
|
Φ500mm-7P |
|||
|
C07=7mm Fin spacing |
|||
|
Model |
MJH502C07R6-E |
MJH502C07R8-E |
|
|
|
SC1(△t=10K) |
37.62 |
44.20 |
|
SC2(△t=8K) |
25.00 |
29.10 |
|
|
SC3(△t=7K) |
18.49 |
21.50 |
|
|
SC4(△t=6K) |
15.24 |
17.90 |
|
|
SC5(△t=6K) |
15.00 |
17.10 |
|
|
heat exchange (㎡) |
85.10 |
113.70 |
|
|
tube volume (dm³) |
27.40 |
36.60 |
|
|
air flow rate (m³/h) |
15300 |
14500 |
|
|
total fan power (W) |
1680 |
1680 |
|
|
total fan current (A) |
2.9 |
2.9 |
|
|
air flow (m) |
39 |
38 |
|
|
defrost power (W) |
9000 |
9000 |
|
|
pipe dia(in/out Φmm) |
22/42 |
28/54 |
|
|
noise(db) |
59 |
59 |
|
|
weight (kg) |
210 |
220 |
|
Production facilities
FAQ
Q: Warranty time?
A: 1 year after you receiving goods.
Q: Do you have any after-sales service for export orders?
A: We are working with some customers for after-sales service and also you can cooperate with us as an agent and after-sales service center.
Q: Which shipping way can you provide?
A: We can provide shipping by sea, by air and by express.
