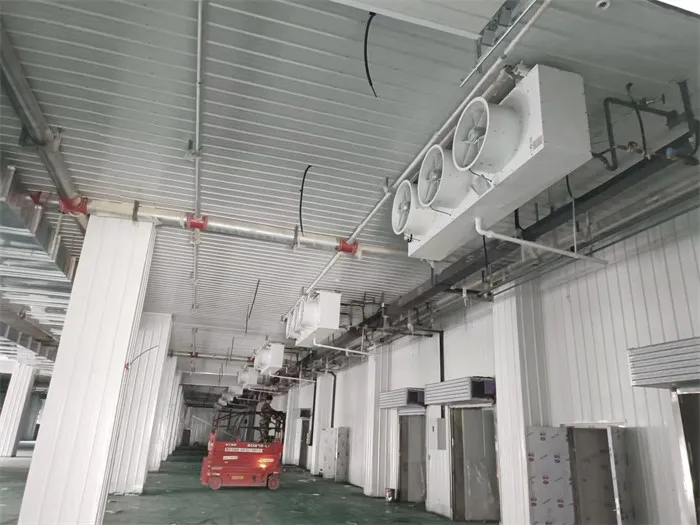

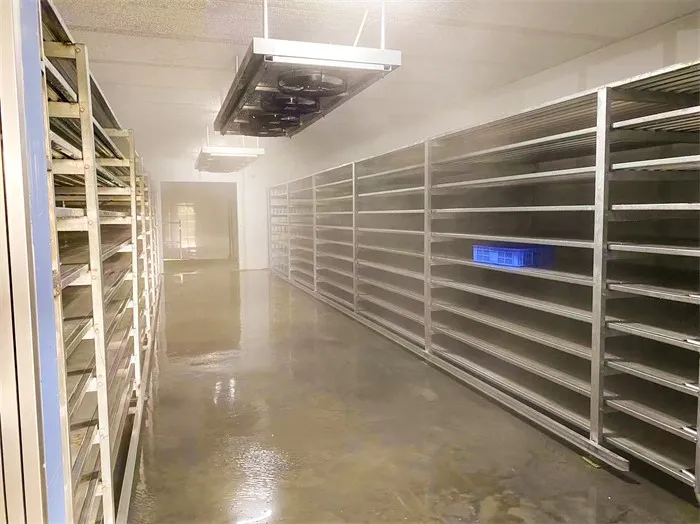

Cold room commercial evaporator
Cold room commercial evaporator is different from traditional air conditioners in that they save space and are more energy-efficient. By mounting it on the ceiling, the device does not take up any floor or wall space, which is crucial for businesses with limited space. In addition, ceiling evaporators operate at a variable frequency, which means they can adjust the required cooling level according to the temperature of the room. It greatly saves energy and reduces the energy bill of the business.
The installation of a cold room commercial evaporator is relatively easy, but the size of the room and the specific cooling requirements must be considered before installing the equipment, with doing that will help to ensure that the equipment provides the best performance and maximum energy performance. Regular maintenance ensures that it is in optimal condition throughout its service life.
installation Tips
After unpacking the outer packaging, the following inspections should be made:
- All components should be connected firmly and correctly.
- The fan blades of the axial flow should be firmly connected.
- The fan blades should rotate freely without friction or collision with the protective cover.
- Check whether the evaporator is damaged or deformed due to transportation, If it is damaged, it cannot be installed and used.
Performance parameters
|
Φ300mm-7P R404A |
||||
|
C07=7mm Fin space |
||||
|
Model |
MJB301C07R4-E |
MJB301C07R6-E |
MJB302C07R4-E |
|
|
Cooling capacity (kw) |
SC1(△t=10K) |
3.41 |
4.38 |
6.68 |
|
SC2(△t=8K) |
2.29 |
2.94 |
4.45 |
|
|
SC3(△t=7K) |
1.65 |
2.16 |
3.29 |
|
|
SC4(△t=6K) |
1.37 |
1.78 |
2.73 |
|
|
heat exchange area(㎡) |
7.38 |
10.90 |
14.26 |
|
|
tube volume (dm³) |
1.68 |
2.30 |
2.90 |
|
|
air flow rate (m³/h) |
1800 |
1700 |
3700 |
|
|
total fan power (W) |
120 |
120 |
240 |
|
|
total fan current (A) |
0.39 |
0.39 |
0.78 |
|
|
air flow (m) |
10 |
10 |
10 |
|
|
defrost power (W) |
1350 |
2250 |
2250 |
|
|
pipe dia. in/out (Φmm) |
12/16 |
12/19 |
12/22 |
|
|
noise(db) |
43 |
43 |
46 |
|
|
weight(kg) |
28 |
30 |
55 |
|
Working conditions
FAQ
Q: Do you have any after-sales service for export orders ?
A:We are working with some customers for after-sales service and also you can cooperate with us as an agent and after-sales service center.
Q:How to quote for a cold storage project?
A: For quick and correct quotation, you need to send us your cold storage size, room temperature, voltage, refrigerant, compressor brand, cooling method, products, products weight and cooling time, then we can offer you a suitable solution for your cold room.
Q: What is the main market for your products?
A: Our main market is in Middle East, Southeast Asia,South America, Africa,South Asia and so on.
