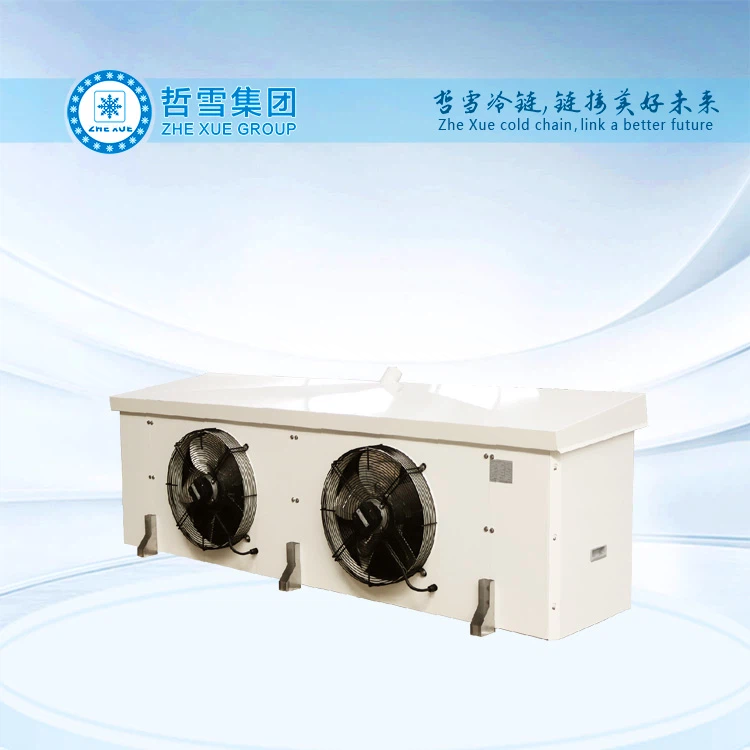

Ceiling type high temperature evaporator
Zhexue brand ceiling type high temperature evaporator is suitable for any kinds of cold storage for the food vegetables, food processing workshop and logistics center. The compact design of our evaporators save much space for our clients, we also choose the external fan motor with lower noise to build a comfortable environment.
Zhexue ceiling type high temperature evaporators' cooling capacity range is from 1.0kw to 210kw, they are used for Freon such as R134A, R22, R404A, R507C and R407C.
Main features
Using 15.88mm copper pipe,9.52mm and 12.7mm inner thread copper pipe, special length between pipes and advanced technology of heat exchange surface make our evaporator more efficiency.
Equipped with the extended wind guide,it can improve the motors efficiency and raise the air flow (motors more than 500mm).
The compact design saves much Freon.
Middle and big size evaporator are equipped with the installation frame, it is easy to transport and install.
Inspection before installation of evaporators
After unpacking the outer packaging, the following inspections should be made:
1)Check whether all connecting parts are loose. All components should be connected firmly and reliably.
2)Check whether the blades of the axial flow fan are loose. The fan blades should be firmly connected.
3)Check whether the fan blades and the protective cover are in contact. The fan blades should rotate freely without friction or collision with the protective cover.
4)Check whether the evaporator is damaged or deformed due to transportation. If it is damaged, it cannot be installed and used.
Performance parameters
|
Φ300mm-7P R404A |
||||
|
C07=7mm Fin space |
||||
|
Model |
MJB301C07R4-E |
MJB301C07R6-E |
MJB302C07R4-E |
|
|
Cooling capacity (kw) |
SC1(△t=10K) |
3.41 |
4.38 |
6.68 |
|
SC2(△t=8K) |
2.29 |
2.94 |
4.45 |
|
|
SC3(△t=7K) |
1.65 |
2.16 |
3.29 |
|
|
SC4(△t=6K) |
1.37 |
1.78 |
2.73 |
|
|
heat exchange area(㎡) |
7.38 |
10.90 |
14.26 |
|
|
tube volume (dm³) |
1.68 |
2.30 |
2.90 |
|
|
air flow rate (m³/h) |
1800 |
1700 |
3700 |
|
|
total fan power (W) |
120 |
120 |
240 |
|
|
total fan current (A) |
0.39 |
0.39 |
0.78 |
|
|
air flow (m) |
10 |
10 |
10 |
|
|
defrost power (W) |
1350 |
2250 |
2250 |
|
|
pipe dia. in/out (Φmm) |
12/16 |
12/19 |
12/22 |
|
|
noise(db) |
43 |
43 |
46 |
|
|
weight(kg) |
28 |
30 |
55 |
|
FAQ
Q: Can you offer installation service of cold storage?
A: Our engineer can go to your site and offer your instructions service.
Q: Warranty time?
A: 1 year after you receiving goods.
Q: Do you provide sample? Is it free?
A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.
