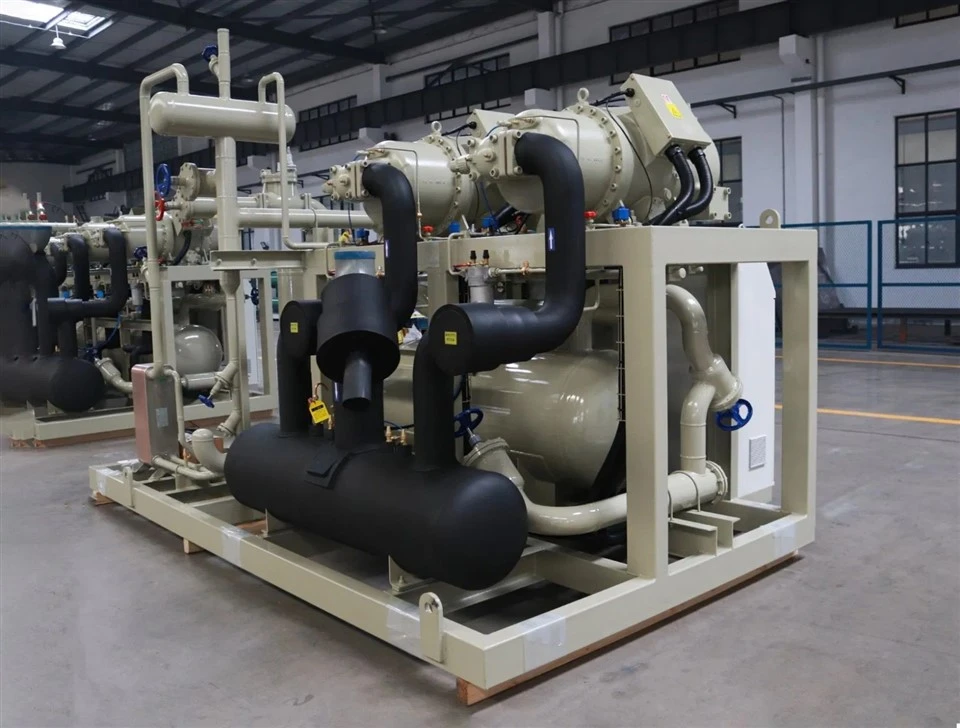

200HP Refrigeration Unit for Low Temperature cold Room
Majorrole 200hp refrigeration unit for low temperature cold room with Hanbell screw compressor is one of our main products, its high efficiency in blasting temperature cold room has win so many high evaluation from our customers. It's suitable for food frozen processing, especially seafood, such as fresh tuna frozen, chemical and pharmaceutical. This series have many product models from30HP to 800 HP, it also supports customization, just send the details of your cold room, we will quote you within 24 hours.
Features
- Quality Assurance
The refrigeration unit is equipped with a compressor and accessories from renowned international brands, ensuring superior performance and durability. It delivers powerful cooling capacity, high energy efficiency, and an extended service life, while operating with low vibration and minimal noise for reliable performance in demanding conditions.
- Advanced Safety System
An integrated intelligent monitoring system continuously tracks operating parameters to ensure safe and stable operation. Compared to single-stage low-temperature screw compressors, this unit achieves over 30% higher energy efficiency, offering an optimal balance between energy savings and operational safety.
- Compact and Integrated Design
Featuring a highly integrated structure, the unit combines the electrical control system, compressor, liquid receiver, oil separator, gas separator, economizer, suction pipe, and main liquid supply pipe into a space-saving design. This streamlined layout simplifies installation, reduces footprint, and enhances maintainability.
- Intelligent User Experience
With one-touch remote monitoring, a PLC controller, and an animated touch-screen interface, the unit supports real-time operational status display, easy parameter adjustment, and automatic fault diagnosis and alerts. The user-friendly design ensures effortless operation and maintenance.
Products Parameters
- Model: MHZLGF-S200JY
- Refrigerant: R507(R404A)
- Power supply: 380V/3P/50HZ
- Compressor: LT-S-83/41*2
- Evaporating Temperature: -60ºC~-30ºC
- Evap.Temp.(-42ºC):
Cooling capacity(KW): 478.4
Input Power(KW): 287.8
- Evap.Temp (-55ºC)
Cooling capacity(KW): 280.2
Input Power(KW): 251
- Liquid pipe(mm)-42ºC/-55ºC: DN80/DN50
- Suction pipe(mm)-42ºC/-55ºC: DN200
- Oil separator outlet(mm)-42ºC/-55ºC: DN80/DN65
- Reservoir inlet(mm)-42ºC/-55ºC: DN100/DN65
- Gas balance pipe(mm): DN50
- Overall size(mm): 3950*2800*2700
Note: Cooling capacity and power setting are based on condensing temp.35ºC, suitable for evaporative condenser.
FAQ
Q: Are you a factory or trading company ?
A: We are a comprehensive refrigeration equipment factory, we produce air cooled and water cooled condensing unit, water chiller, evaporators, air condensers. We cooperate with many international compressor brands, such as Bitzer, Mycom, GEA, Frascold, Hanbell and others .
Q: Can you offer installation service of cold storage?
A: Our engineer can go to your site and offer your instructions service
Q: Warranty time?
A: 1 year after you receiving goods.
Q: Do you have any after-sales service for export orders ?
A: We are working with some customers for after-sales service and also you can cooperate with us as an agent and after-sales service center.
Q: How to quote for a cold storage project?
A: For quick and correct quotation, you need to send us your cold storage size, room temperature, voltage, refrigerant, compressor brand, cooling method, products, products weight and cooling time, then we can offer you a suitable solution for your cold room.
