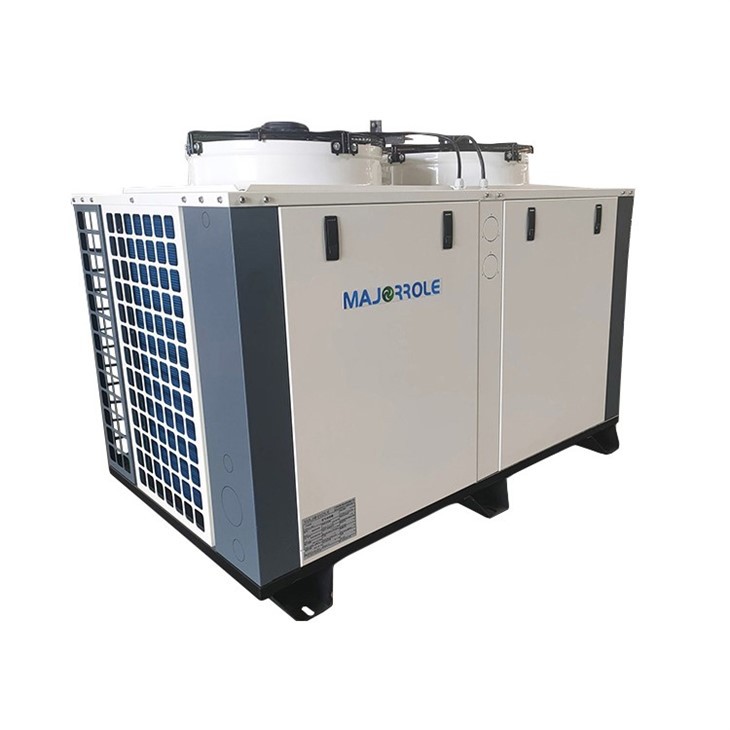

Compact commercial condensing unit
The compact commercial condensing unit is designed with an integrated box structure, with the surface of the steel plate coated with high-quality anti-corrosion paint, resulting in an aesthetically pleasing appearance. The unit is equipped with an external rotor axial flow fan that runs smoothly and generates minimal noise. The air cooled box type condensing unit is suitable for use in condensing units due to its large air intake surface and excellent heat exchange performance.
The compact commercial condensing unit can be installed quickly and easily, without the need for extensive modifications to your existing infrastructure. And because the unit is designed with low-maintenance components and features, you can enjoy hassle-free operation and reduced downtime.
Products Features
- Qualified with CE certificates
- Compact figure makes it easy to install
- High heat exchange capacity of condenser
- Suitable for any brands of compressors internally
Performance parameters
|
MXJB box type condensing unit with Bitzer semi-hermetic compressor |
|||||
|
Unit model |
MXJB07 |
MXJB09 |
MXJB10 |
||
|
U condenser |
FNU-80 |
FNU-100 |
FNU-100 |
||
|
Refrigerant |
R22(R404A/R507A) |
||||
|
Power supply |
380V/3P/50HZ |
||||
|
Compressor |
Model |
4DES-7(Y) |
4CES-9(Y) |
4VES-10(Y) |
|
|
Qty |
1 |
1 |
1 |
||
|
condenser |
Fan Qty |
2 |
2 |
2 |
|
|
fan voltage(V) |
380 |
380 |
380 |
||
|
fan power (W) |
460 |
840 |
840 |
||
|
Evaporating Temperature |
-20℃~+10℃ |
||||
|
Evap.Temp |
Cooling capacity(KW) |
13.37 |
17.01 |
18.25 |
|
|
Power input(KW) |
5.4 |
6.93 |
6.88 |
||
|
Running current(A) |
10.1 |
12.11 |
12.7 |
||
|
Liquid pipe(mm) |
Φ12 |
Φ12 |
Φ16 |
||
|
Suction pipe(mm) |
Φ28 |
Φ28 |
Φ28 |
||
|
Overall size |
L(mm) |
1380 |
1340 |
1340 |
|
|
W(mm) |
770 |
770 |
770 |
||
|
H(mm) |
1000 |
900 |
900 |
||
|
Refrigeration amount and power are set based on condensing temperature of 45℃,Suitable for air-cooled condenser |
|||||
Production line
FAQ
Q: How to quote for a cold storage project?
A: You have to offer us your cold storage size, room temperature, voltage, refrigerant, compressor brand, cooling method, products, products weight and cooling time, then we can calculate and suggest you suitable machines.
Q: Can you accept OEM design?
A: We usually promote our Zhexue Brand, but OEM design is acceptable.
Q: Which shipping way can you provide?
A: We can provide shipping by sea, by air and by express.
