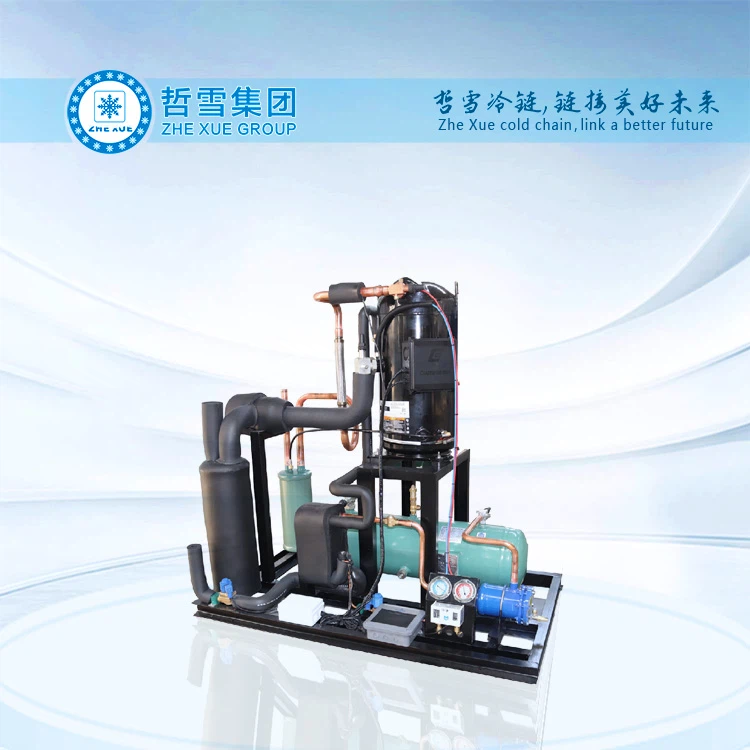

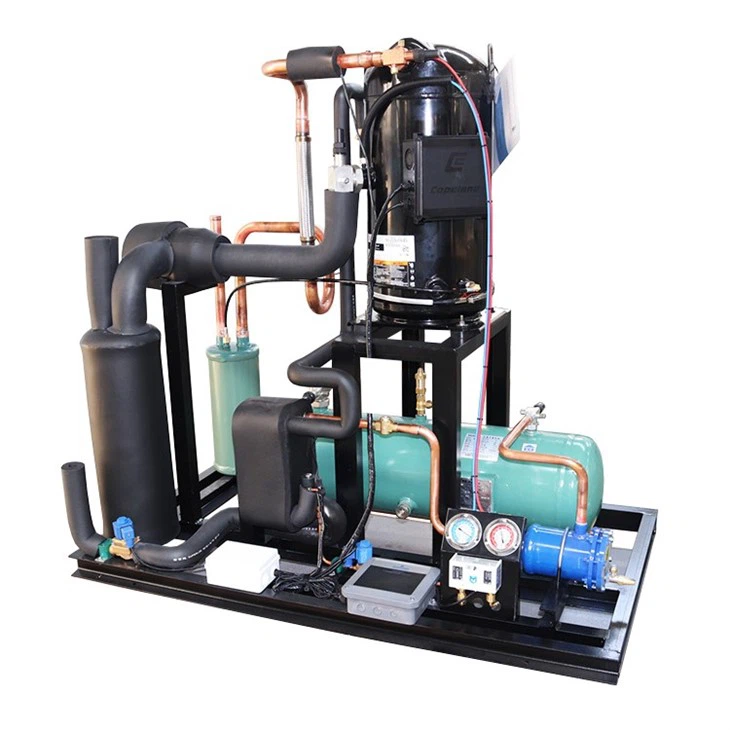

Scroll commercial condensing unit
The scroll commercial condensing unit with scroll compressor is a highly efficient refrigeration system that utilizes multiple compressors in parallel to share the exhaust manifold, suction manifold, condenser, liquid storage tank and other components, thereby forming a highly efficient refrigeration cycle system. With a large cooling capacity and centralized control, the unit is the ideal solution for a wide range of industrial cooling needs.
The compact design of the unit ensures minimal vibration and low overall dimensions, making it easy to install and maintain. The user-friendly design enables easy and simple replacement of vulnerable components, ensuring long-term reliability. In addition to its sleek appearance, the unit also provides a variety of safety protection and alarm measures, as well as remote communication monitoring, to improve overall safety and stability.
|
Components List |
|
compressor |
|
HP/LP controller |
|
pressure controller connection soft pipe |
|
LP oil gauge |
|
pressure gauge soft pipe (LP) |
|
HP oil gauge |
|
pressure gauge soft pipe(HP) |
|
HP/LP sensor |
|
angle valve |
|
Suction filter vat |
|
filter corn |
|
liquid supplying angle valve |
|
Accumulator |
|
suction check valve |
|
discharge check valve |
|
discharge pipes |
|
pressure maintain valve |
|
oil separator |
|
oil supplying valve |
|
low oil level alarm |
|
oil heater |
|
outlet valve |
|
oil separator safety valve |
|
dry filter vat |
|
oil filter corn |
|
oil pipe ball valve |
|
Siphon oil cooler |
|
Siphon column |
|
oil pipe solenoid valve |
|
oil cooler inlet check valve |
|
oil cooler after heating check valve |
|
oil filter |
|
oil flow switch |
|
oil brand pipe solenoid valve |
|
sight glass |
|
ball valve |
|
liquid receiver |
|
safety valve |
|
dry filter vat |
|
filter corn |
|
liquid supplying solenoid valve |
|
ECO economizer |
|
ECO filter |
|
ECO sight glass |
|
ECO solenoid valve |
|
ECO expansion valve |
|
ball valve |
|
sight glass |
|
check valve |
|
PLC |
|
Refrigeration unit with Frascold screw compressors |
|||||
|
Unit model |
MFRLGF2- 60(L)JY |
MFRLGF2- 80(L)JY |
MFRLGF2- 100(L)JY |
||
|
Refrigerant |
R507(R404A) |
||||
|
Power supply |
380V/3P/50HZ |
||||
|
Compressor |
Model |
FVR-L-30-120Y |
FVR-L-40-140Y |
FVR-L-50-160Y |
|
|
Qty |
2 |
2 |
2 |
||
|
Evaporating Temperature |
-50℃~-10℃ |
||||
|
Evap. Temp |
-25℃ |
Cooling capacity(KW) |
106.2 |
126.6 |
143.6 |
|
-25℃ |
Power input(KW) |
58 |
67 |
75.2 |
|
|
-42℃ |
Cooling capacity(KW) |
50.2 |
61.6 |
70 |
|
|
-42℃ |
Power input(KW) |
50.4 |
56.6 |
61 |
|
|
Liquid pipe(mm) |
Φ28 |
Φ35 |
Φ35 |
||
|
Suction pipe(mm) |
DN80 |
DN80 |
DN80 |
||
|
Oil separator outlet(mm) |
DN50 |
DN50 |
DN50 |
||
|
Receiver inlet(mm) |
Φ35 |
DN40 |
DN40 |
||
|
Overall size |
L(mm) |
2600 |
2600 |
2600 |
|
|
W(mm) |
1950 |
1950 |
1950 |
||
|
H(mm) |
1800 |
1800 |
1800 |
||
|
cooling capacity and power are set based on condensing temperature of 35℃,used for evaporation condenser. |
|||||
FAQ
Q:When can I get the price?
A:Usually we quote within 24 hours after we get your inquiry.
Q: Can you accept OEM design?
A: We usually promote our Zhexue Brand, but OEM design is acceptable.
Q: Can you do our own packaging?
A: Yes, you only need to provide the package design and we will produce what you want. We also have professional designer who can help you with the packaging design.
